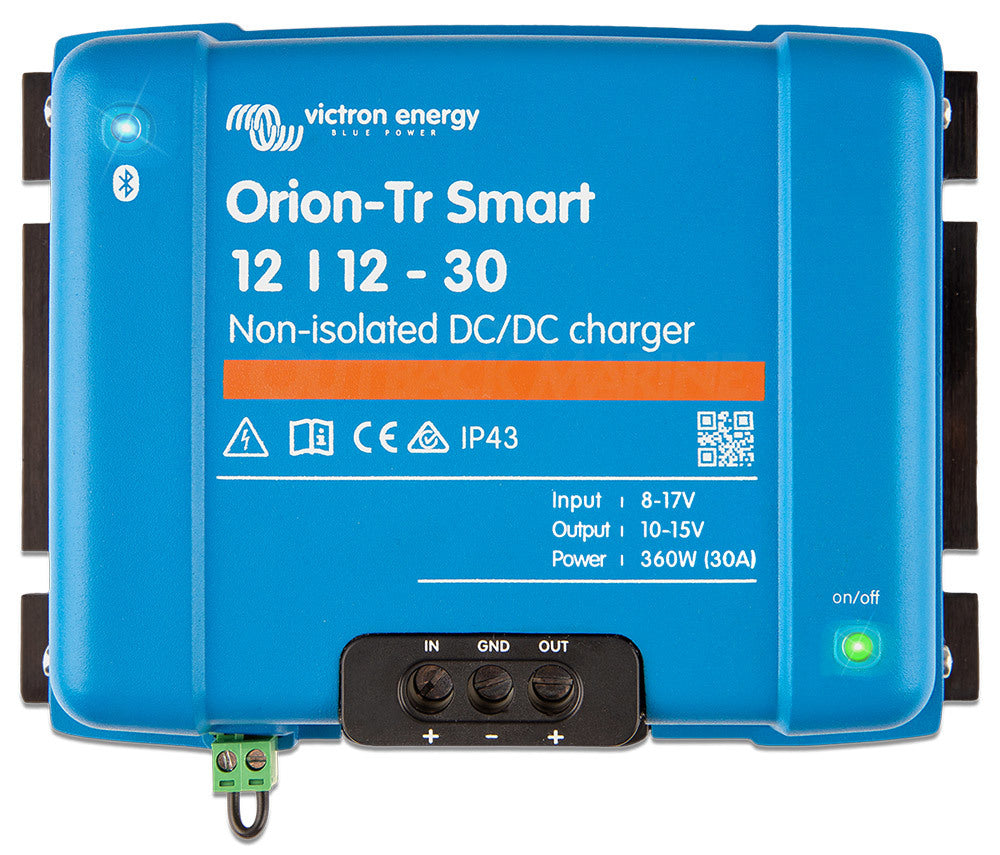

Victron Energy Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Specifications
| Product Name | Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger, 5 Year Warranty |
| SKU | ORI121236140 |
| GTIN (Global Trade Item Number) | 8719076048954 |
| Brands | Victron |
| Product Category | Battery Chargers |
| Output Current Rating (Amps) | 30.0 Amps |
| DC Input Voltage | 10-17V |
| DC Output Voltage | 12,2V |
| Standby Current | Less than 1 mA |
| Efficiency | 87% |
| Operating Temperature Range | -20 to +55°C (derate 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| Output System Voltage | 12V |
| Short Circuit Current Isc(A) | 60A |
| Dimensions | 130 x 186 x 80 mm (L x W x H) |
| Net Weight (kg) | 1.8 Kg |
| Under Voltage Shutdown | 7V |
| Maximum Charge Current | 40A |
| No load power consumption | <80 mA |
| Manufacturers Warranty | 5 Years |
